Introducing

Multi Radiance's NEW Shockwave Therapy

The state-of-the-art MPACTVet Extracorporeal Shockwave therapy (ESWT) Unit is an innovative, non-invasive device that provides safe and comfortable treatment without sedation. MPACTVet provides precise, adjustable penetration depth to areas of up to 200mm through a variety of handpieces and applicators that provide faster tissue healing and pain relief from a powerful, yet quiet piezoelectric powertrain.

MPACTVet - A Powerful, Quiet, and Pain-Free Piezoelectric Device!

Accurately Controlled Energy

Accurately control the shape and composition of the energy profile with state-of-the-art transducers comprised of more than 200 piezoelectric elements.

Portable & Rugged

Integrated, rugged carrying case with built-in storage provides portability for quick use in multiple environments.

Intuitive Interface

Select the most common treatments based on easy-to-navigate species- and anatomy-based protocol selection menu with the Flexibility of real-time customization of intensity, frequency and total number of pulses.

The Right Tool for Any Job

Choose from a variety of focused handpieces of 25, 40, 60, and 110mm and 25mm Linear, each with a set 5-6 standoffs for optimal tissue penetration.

What is Piezoelectric Shockwave?

Piezoelectric shock wave is a direct focusing method, and it has a faster treatment effect, convenience of use, and excellent durability compared to the existing electro-hydraulic, radial, and electromagnetic methods.

Choose From a Wide Variety of Treatment Handpieces to best fit your practice

Options include focused 25, 40, 60 and 110mm handpieces and a 25mm linear handpiece to suit your treatment area, with single pulse high pressure wave / high peak pressure up to 147 MPa or more. More than 200 piezoelectric elements deliver the exact amount of energy.

5,000,000 high-pressure pulses, guaranteed

With various gel pad configurations maximizing treatment efficiency

Type

Handpiece

Penetration Depth & Treatment Area

Focused

110 mm Handpiece

Includes 5 gel pads: 70, 80, 90, 100, & 110

Focused

60mm Handpiece

Includes 6 gel pads: 10, 20, 30, 40, 50, & 60

Focused

40 mm Handpiece

Includes 6 gel pads: 10, 15, 20, 25, 30, & 40

Focused

25 mm Handpiece

Includes 5 gel pads: 5, 10, 15, 20, & 25

Linear

25 mm Handpiece

Includes 5 gel pads: 5, 10, 15, 20, & 25

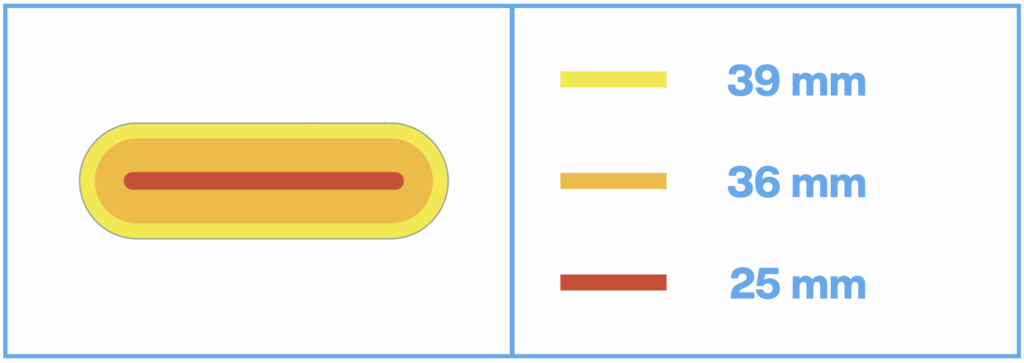

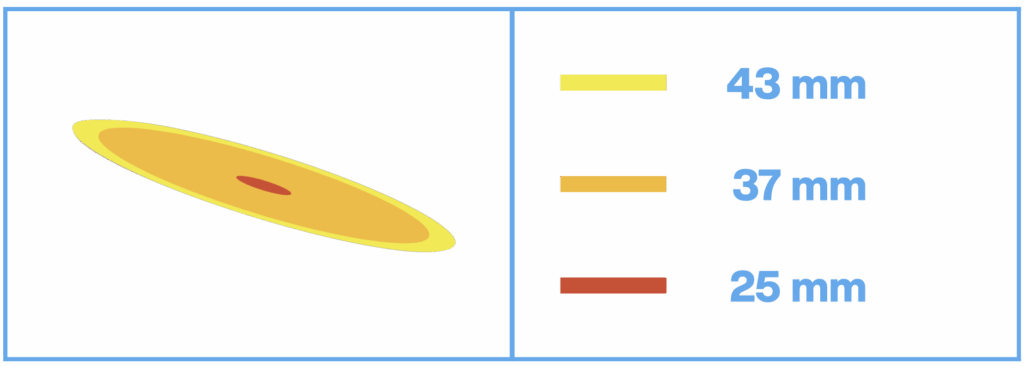

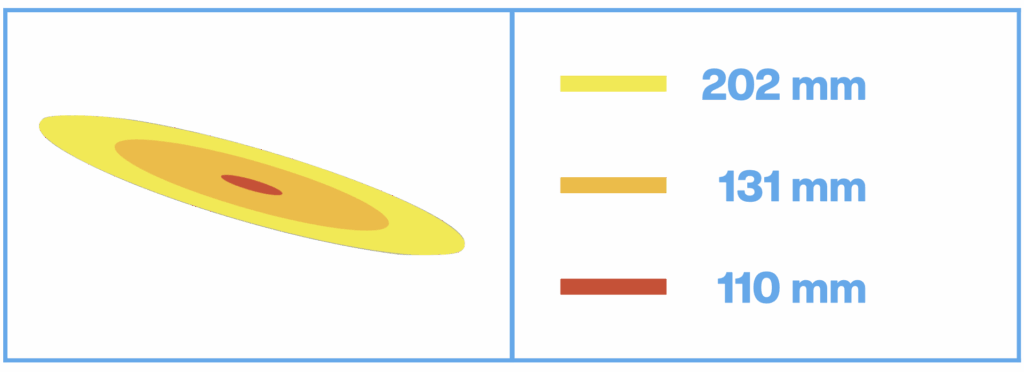

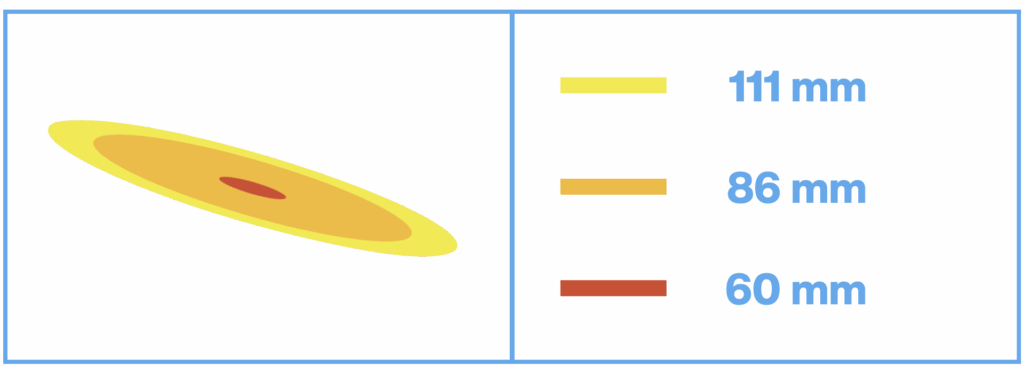

Treatment area (Focal cross-section)

Yellow zone: 5MPa Zone / Acoustic pressure is at least 5 MPa

Orange zone: -6dB Zone / Acoustic pressure is 50% of the maximum acoustic pressure

Red dot: Maximum acoustic pressure in MPa

Broad Range of Conditions Treated

Osteoarthritis
DJD
Post TPLO
IVDD and lumbosacral stenosis
Shoulder, elbow, and carpal diseases
Bone healing disturbances
Acute and chronic tendon/ ligament injuries
Myofascial trigger points
And Much More!

What’s Included

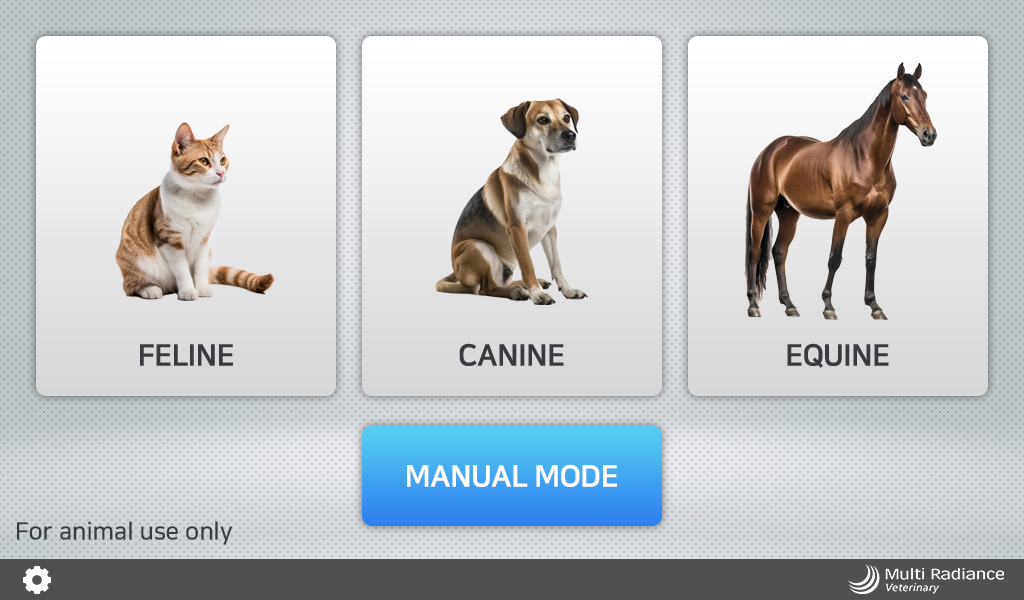

Intuitive Interface

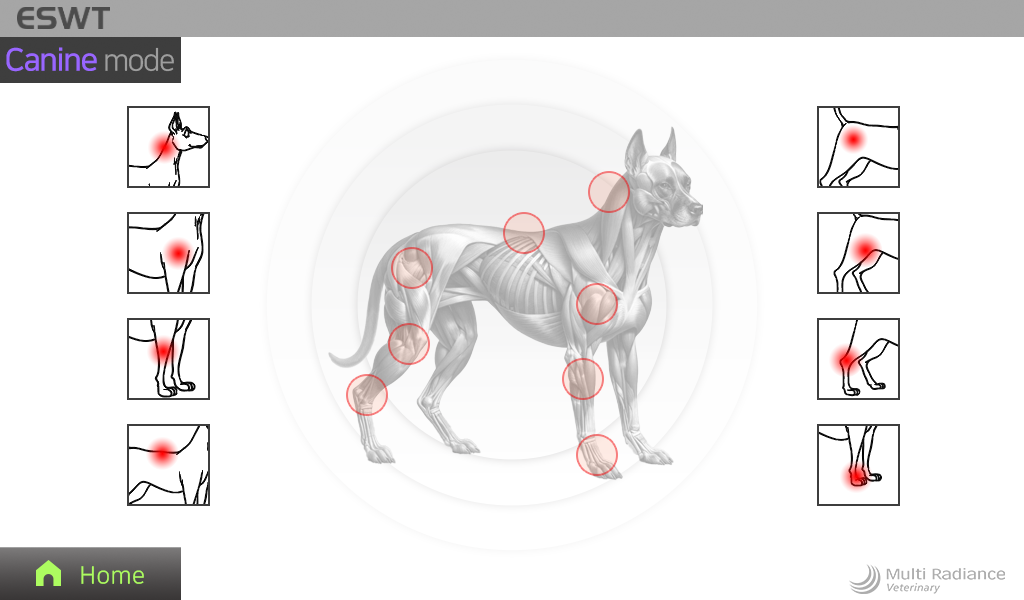

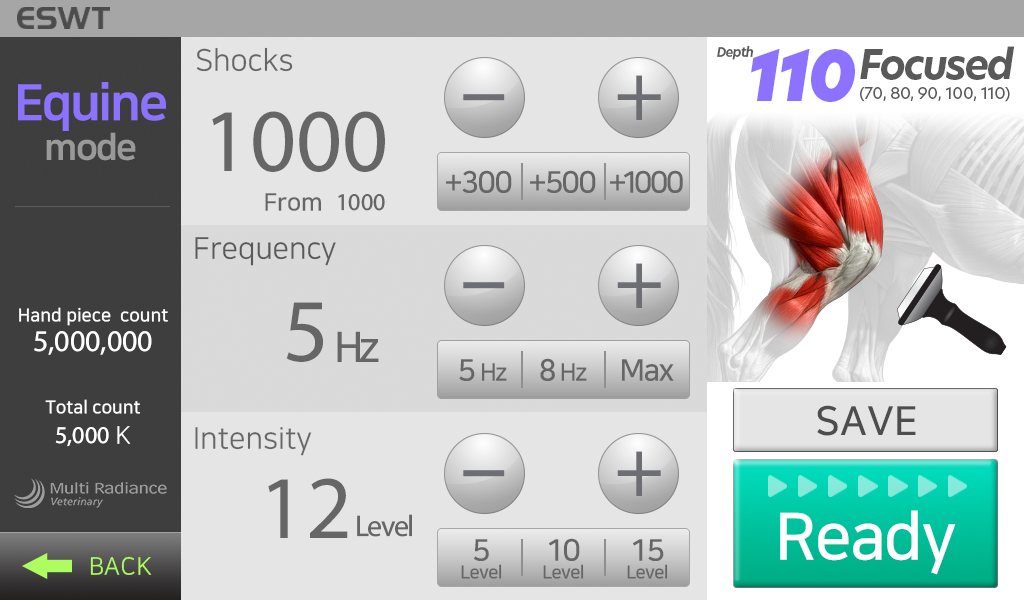

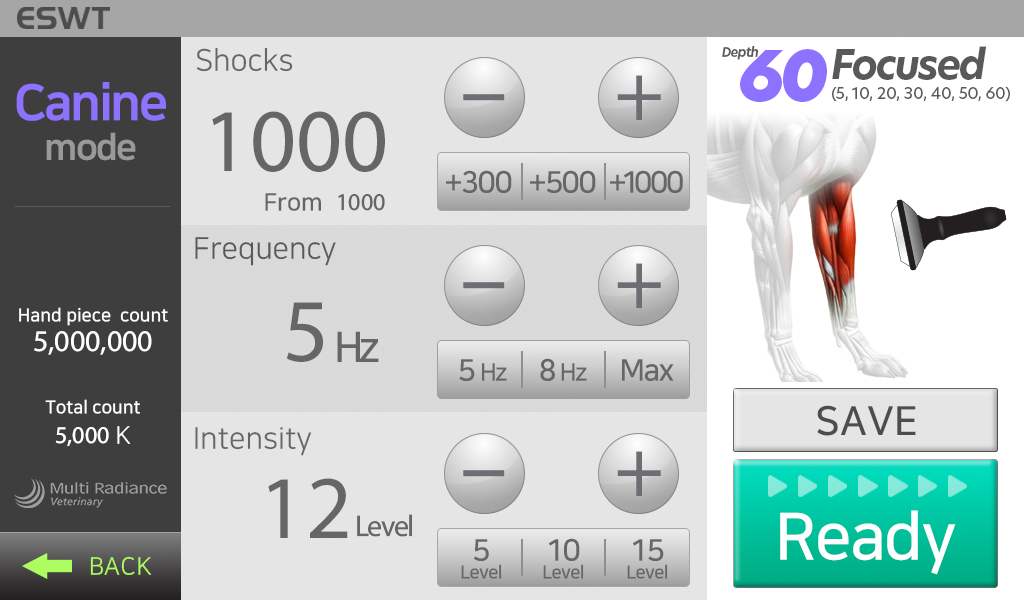

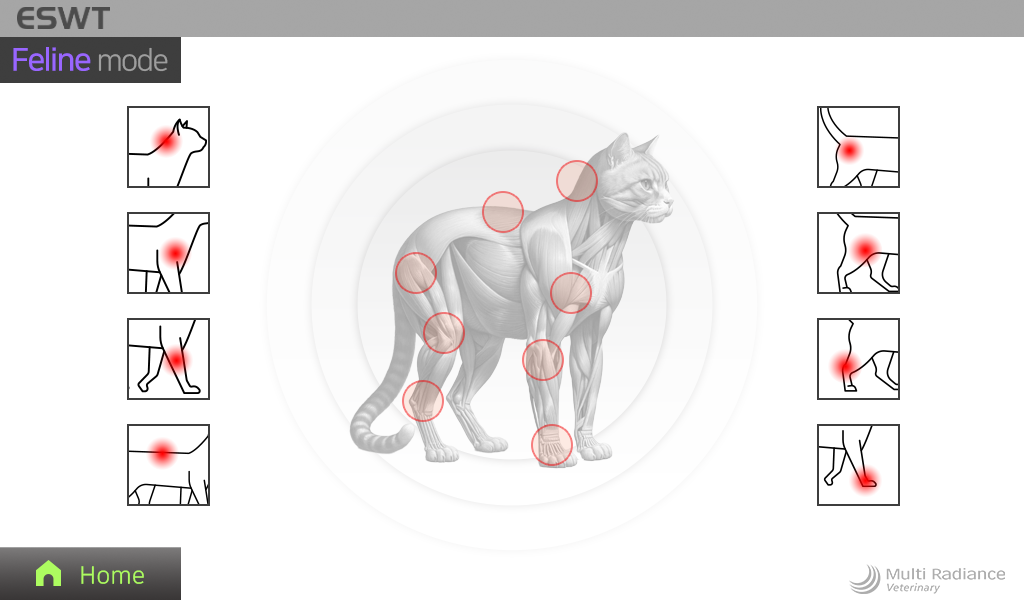

With built in protocols for Feline, Canine, and Equine, Select the most common treatments based on easy-to-navigate species- and anatomy-based protocol selection menu with the flexibility of real-time customization of intensity, frequency and total number of pulses.

MPACTVet System Specifications

Specification	Value
Model	Extracorporeal shock wave therapy MPACTVet
Type	Class 1 ME equipment, BF Type
Ratings	220-230V or 110V, 50/60Hz, 200VA
Size	~13"x9"x9" (Main Body)
Weight	~28 lbs (Main Body)

Focused ESWT Handpiece Specifications

Specification	Value
Energy Density (Power)	0.023~0.243 mJ/mm2
Peak Positive Pressure	90.3 MPA
Frequency	10 Hz
Shock Wave Energy per Pulse	40.5 mJ
Kind of Applications	110 mm

Linear ESWT Handpiece Specifications

Specification	Value
Energy Density (Power)	0.03-0.16 mJ/mm2
Peak Positive Pressure	21 MPA
Frequency	10 Hz
Shock Wave Energy per Pulse	30 mJ
Kind of Applications	25 mm
